SPLICES, SPLICING MACHINE & TOOLING

SPLICES

image  image

We supply two types of continuous splice band material



NON-MAGNET WIRE PIERCING SPLICE



MAGNET WIRE PIERCING SPLICE -NEW-



Typical applications: lead wires, magnet wires, motor brushes, led, resistors, diodes, pc boards, pins etc.
Splice band finishes: brass, tin plated brass, cooper nickel and CRS
Sizes: from .050 (1.3 mm) to .330 (8.4 mm) width – from .016 (0.3 mm) to .040 (1.0 mm) thickness

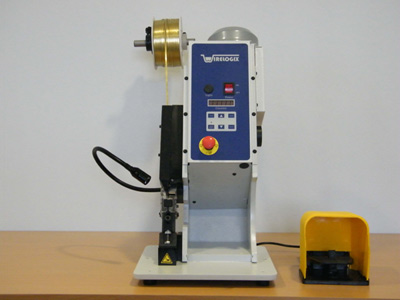

DDM SPLICING MACHINE



MACHINE SPECIFICATIONS

  • Press: 1 ton
  • Cycle time: 1 second
  • Direct drive motor: 220V-50Hz
  • CE Approved

Machine can be equipped with crimping control monitors:


  image   image



TOOLING

We manufacture tooling suitable for all types of splicing machines to crimp any size of non-magnet or magnet wire piercing splice band.

Typical tooling sizes:

P/N

CMA Range

mm²

M01-0134

130 - 800

0.07 - 0.40

M01-0135

400 - 1200

0.20 - 0.60

M01-0090

600 - 1600

0.30 - 0.81

M01-0065

900 - 2600

0.45 - 1.31

M01-0043

1600 - 4000

0.81 - 2.02

M01-0050

2200 - 5200

1.11 - 2.63

M01-0035

3000 - 6750

1.52 - 3.42

M01-0041

4000 - 8500

2.02 - 4.31

M01-0057

5000 - 10000

2.53 - 5.57

Other tooling sizes are available upon request.




SPARE PARTS

Spare parts are available for existing and new machines. We also manufacture custom parts.

Download brochures:



image Non-magnet wire piercing splice.pdf
image Magnet wire piercing splice.pdf
